Silicone Coated Fiberglass Conveyor Belts

Silicone coated glass fabric belting for equipment that needs a resilient coated contact face. It provides a different surface feel from PTFE and is selected where product handling depends on both release and grip.

Silicone surface on a woven glass carrier
Flexible coated belt stock
Custom dimensions and splice configuration

Request a Product Quote View specifications

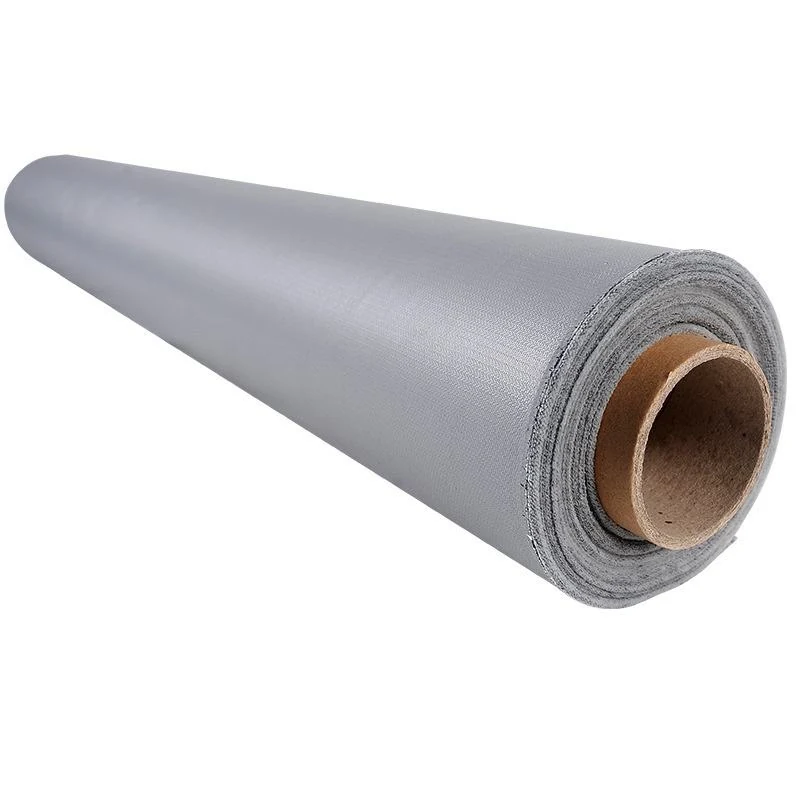

Gray silicone coated fiberglass belt stock in a roll — Coated fabric belt stock

Material & configuration

Product Specifications

Choose the construction and dimensions for the equipment and the material it handles.

Silicone Coated Fiberglass Conveyor Belts specifications
Carrier	Woven fiberglass fabric
Surface coating	Silicone rubber
Form	Belt stock and equipment-specific finished belts
Dimensions	Width, length or circumference to the conveyor layout
Mechanical selection	Coating build, roller diameter and bending path
Joining	Splice arrangement selected for equipment clearance and handling duty

Select a specification

Standard Configurations

Select a silicone-coated glass-fabric belt around the required product grip and release. The reference identifies the carrier and coating rather than a fixed-size replacement.

Silicone Coated Fiberglass Conveyor Belts standard options and supply formats
Reference SKU	Specification	Supply format	Supply route	Inquiry
CPT-SIL-GF	Silicone-coated woven fiberglass; process belting	Finished belt; coating build and size to order	Made to order	Quote This Option

Provide width, length or circumference, coating build, surface finish and splice requirements. Include the smallest roller and product-contact duty for the construction quotation.

Need a different specification? Send your dimensions

Choose the contact surface around the product

PTFE and silicone surfaces handle a workpiece differently. A silicone-coated face is resilient and can provide more grip, while a PTFE face is selected for a lower-adhesion, lower-friction contact path.

That difference matters where a piece must stay in position on a carrier or be fed through a controlled contact zone. Compare the product's release, marking and movement on the actual coating instead of selecting a belt only by its heat-resistance description.

Keep the carrier and coating in the specification

This is a glass-fabric-supported coated belt, not a solid silicone sheet. The carrier supports the running belt while the coating defines the contact face. Coating build, fabric construction and splice detail together determine how the belt flexes over a roller.

Show the smallest roller and any reverse bends in the machine path. Choose the surface finish and seam location for the workpiece, and assess cleaning chemicals against the silicone coating rather than assuming PTFE chemical behavior.

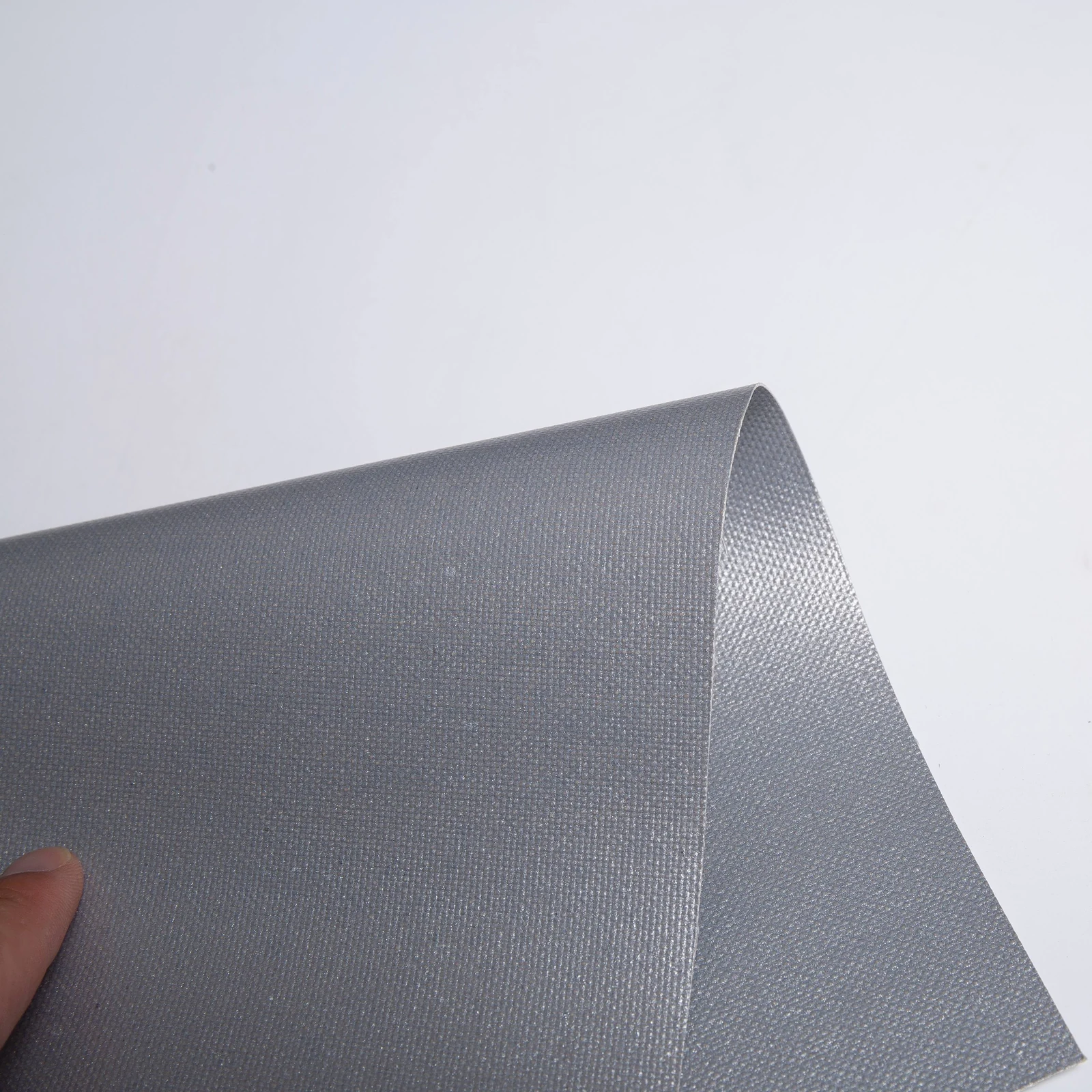

Gray coated fabric bent into a broad curve — Flexible coated belt face

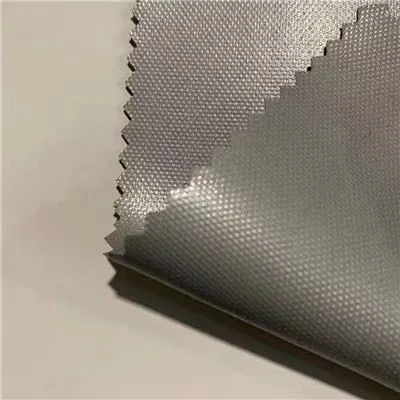

Close view of gray coated fabric and its woven edge — Woven carrier and coated surface

Equipment & process duties

Applications

Controlled product handling

Carry pieces where a resilient contact face and grip help maintain their position.

Coated-fabric process belts

Use supported silicone belting in equipment designed for its surface and flexing behavior.

Replacement belt evaluation

Compare silicone and PTFE contact behavior when the existing product slips, sticks or marks.

Direct answers

Common Questions

Is silicone coated belting the same as a PTFE belt?

No. The surface polymer is silicone rather than PTFE, so grip, release, resilience and chemical behavior differ. Select it for the product contact duty and equipment arrangement.

Is this belt made from solid silicone?

No. It uses a woven fiberglass carrier with a silicone coating. A solid silicone sheet has a different construction and mechanical behavior.

What information matters most for a replacement?

Provide the installed dimensions, smallest roller, any reverse bends, splice, temperature and cleaning routine. Include the product being conveyed and whether grip or easy release is the primary contact requirement.

Specify your requirement

Quote Silicone Coated Fiberglass Conveyor Belts

Send width, length or endless circumference, roller diameters and splice details. Add the product contact requirement, process temperature, cleaning chemicals and quantity.

Send Your Requirement

Compare the construction
