Seamless PTFE Fusing Belts

Jointless PTFE fusing belts for heated textile pressing and interlining work. A continuous loop removes the recurring seam from the press path, helping keep the contact profile consistent as each piece passes through the machine.

Jointless loop for a consistent press path
Black 0.48 mm seamless configuration
Specified to the installed machine belt path

Request a Product Quote View specifications

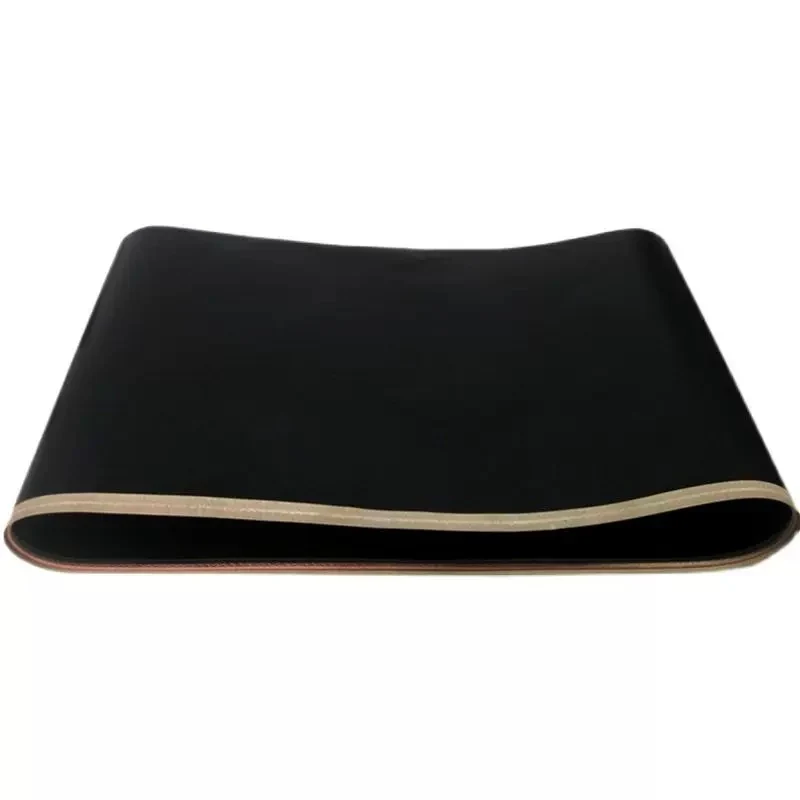

Black jointless fusing belt formed into a flat loop — Continuous fusing belt loop

Material & configuration

Product Specifications

Choose the construction and dimensions for the equipment and the material it handles.

Seamless PTFE Fusing Belts specifications
Product type	Seamless PTFE fusing machine belt
Listed seamless option	0.48 mm, black, smooth surface
Loop geometry	Machine-specific width and circumference
Working surface	PTFE release face for heated pressing
Installation dimensions	Roller diameter, tensioning travel and belt path
Separate alternative	1.50 mm composite belts belong to the solid belt range

Select a specification

Standard Configurations

The standard seamless construction is a black, smooth 0.48 mm belt. Its loop geometry follows the fusing machine.

Seamless PTFE Fusing Belts standard options and supply formats
Reference SKU	Specification	Supply format	Supply route	Inquiry
CPT-SF-048-BK	0.48 mm; black; smooth; seamless construction	One endless belt; width and circumference to order	Made to order	Quote This Option

Specify belt width, endless circumference, machine model and roller dimensions. A 1.50 mm composite belt is a separate solid-belt option and is not listed here as seamless.

Need a different specification? Send your dimensions

Remove the seam from the pressing cycle

In fusing work, a joint can repeatedly pass under a pressing zone and change the local contact profile. A seamless loop removes that specific discontinuity. It is especially useful where the pressed material is sensitive to a recurring seam mark.

The belt still needs accurate tracking and a clean release face. Keep resin and adhesive deposits from building into raised areas, and avoid sharp creases during handling so the finished surface remains consistent.

Fit the machine, including its tensioning range

A replacement belt must fit the whole running path. Give the working width, endless circumference and smallest roller diameter, then add the available tensioning travel. A belt that is dimensioned from a flattened sample without checking the machine can be difficult to install or tension correctly.

Where a thicker multilayer belt is required, specify a composite belt as a separate construction. Do not describe a 1.50 mm composite option as seamless unless that particular loop is made without a joint.

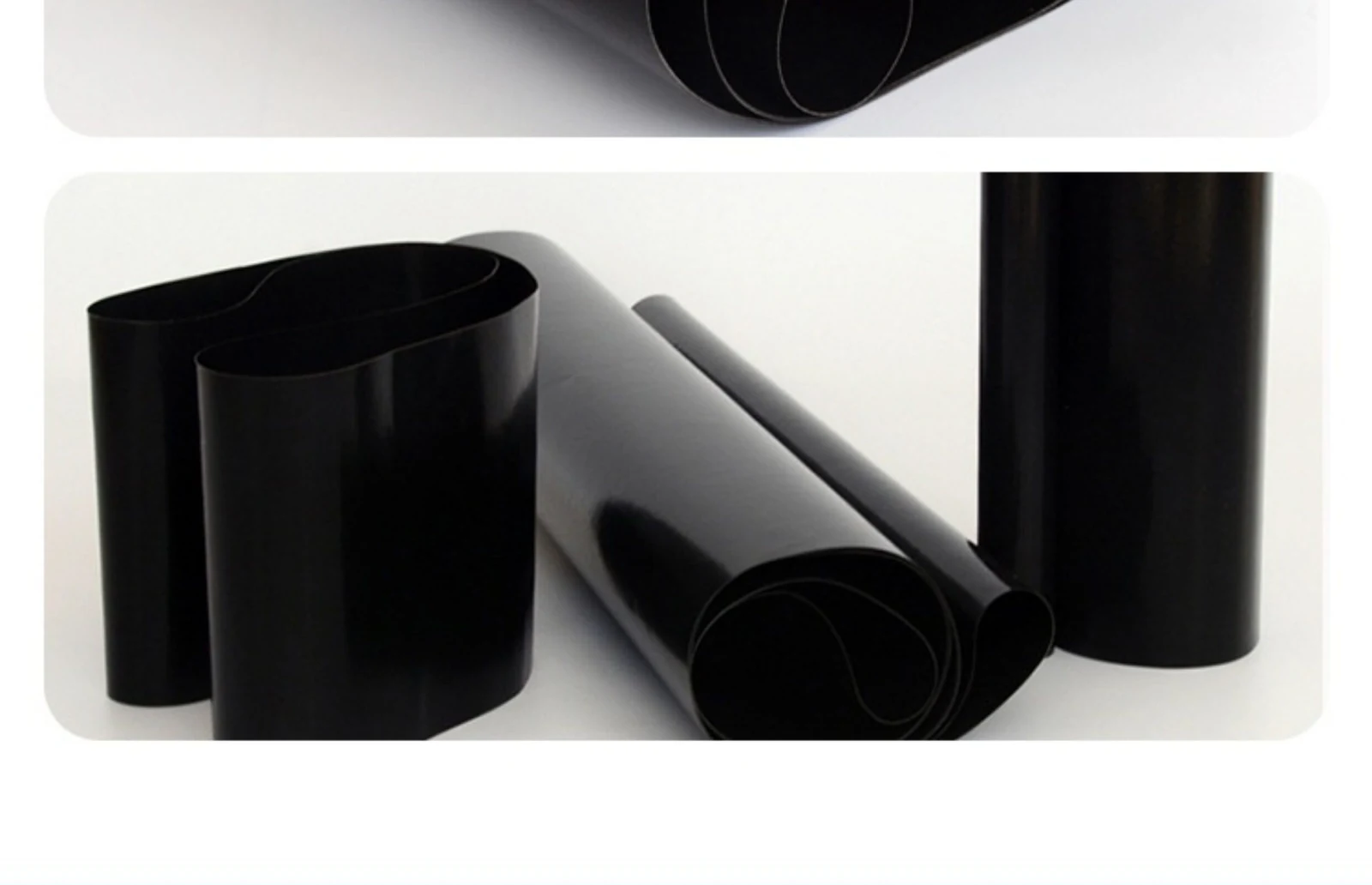

Black fusing belts displayed as loops and curled sections — Loop shape and handling views

Equipment & process duties

Applications

Garment fusing presses

Carry interlining and fabric through a heated press without a recurring belt splice in the contact zone.

Collar pressing

Support small textile assemblies where a consistent belt profile matters to the pressed finish.

Textile bonding machines

Fit a continuous release loop to a machine with compatible roller geometry and tension control.

Direct answers

Common Questions

What does seamless mean on this belt?

It means the running loop has no joining seam. The term does not describe thickness, color or the number of layers; those are separate construction details.

Can a thicker composite belt be substituted?

Not from thickness alone. A composite belt changes the loop's flexibility and installed contact profile, and can include a joint. Match the replacement to the machine's rollers, press gap and intended construction.

How should I measure a replacement fusing belt?

Record the belt working width and installed circumference, then measure roller diameter and tensioning travel. A machine model and photos of the belt path help identify guide features and installation access.

Specify your requirement

Quote Seamless PTFE Fusing Belts

Send the fusing machine model, belt width, endless circumference, required 0.48 mm construction, roller diameter and tensioning travel. Include the press duty and quantity.

Send Your Requirement

Compare the construction
