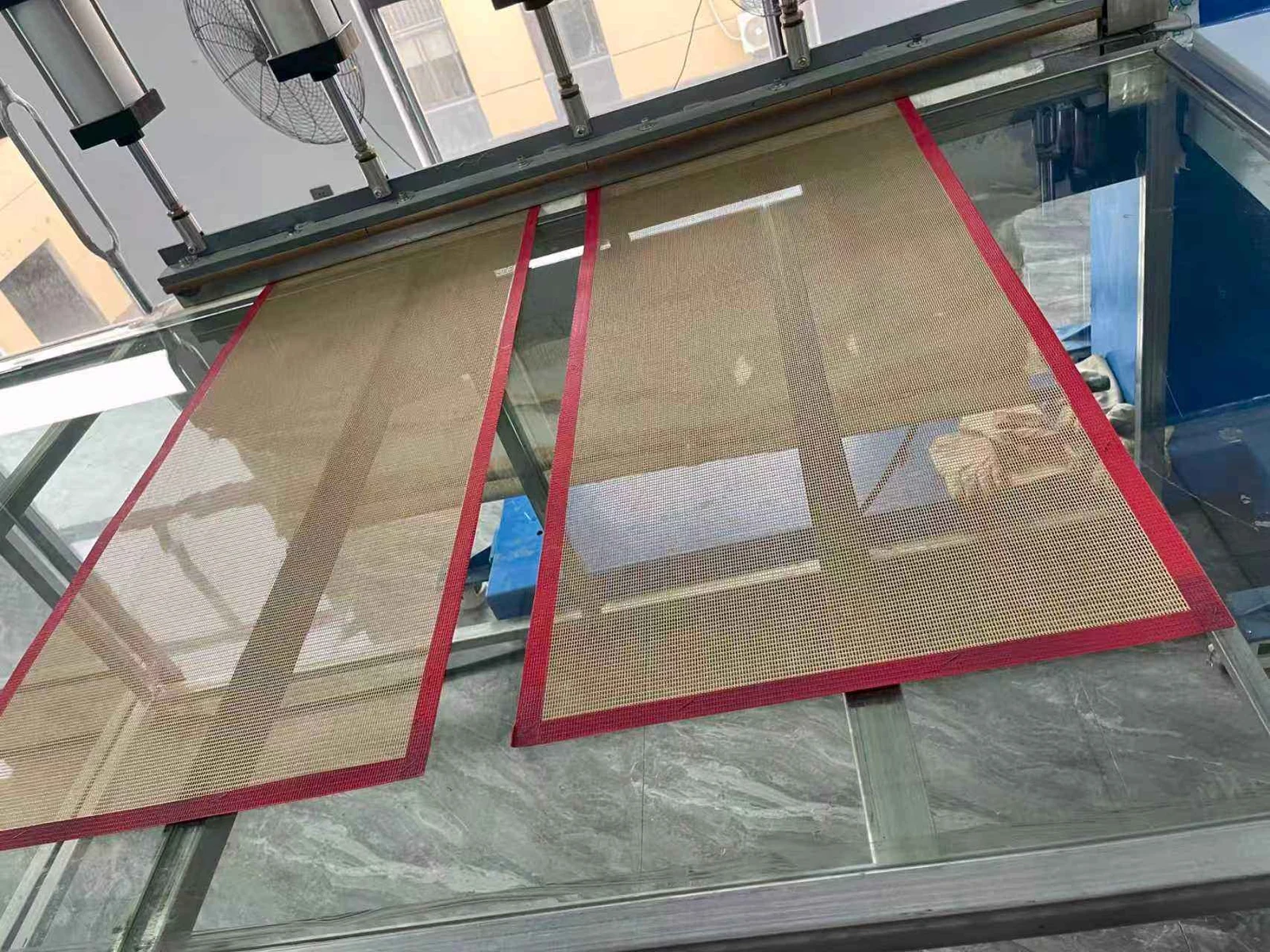

Finished PTFE mesh panels with reinforced borders for repeated handling. The open center allows ventilation while the edge treatment keeps the cut mesh organized around the panel perimeter.
Material & configuration
Choose the construction and dimensions for the equipment and the material it handles.
| Center material | PTFE coated fiberglass mesh |
|---|---|
| Mesh opening | 4 × 4 mm |
| Edge format | Reinforced perimeter; border detail specified for the panel |
| Form | Flat removable sheets and cut panels |
| Dimensions | Finished outside dimensions and active mesh area |
| Equipment interface | Tray, frame and fixture clearances to drawing |
Select a specification
Specify a 4 × 4 mm open center with a reinforced border for a removable process panel. The active mesh area and outside dimensions are sized separately.
| Reference SKU | Specification | Supply format | Supply route | Inquiry |
|---|---|---|---|---|
| CPT-RMS-44 | 4 × 4 mm opening; reinforced perimeter | Finished panel; outside size and border to order | Made to order | Quote This Option |
Include border width, outside dimensions, attachment details and the tray or frame drawing. The perimeter is fabricated for the panel and is not supplied as an endless belt.
Need a different specification? Send your dimensionsRaw mesh edges can fray or distort when a sheet is moved between trays. A reinforced border defines the perimeter and makes the panel easier to handle as a repeatable fixture component.
The border also occupies space. Specify both the finished outside size and the unobstructed mesh area so the panel fits the tray without covering the ventilation area that the process needs.
A flexible mesh sheet needs an appropriate supporting tray or frame. The border does not turn it into a rigid screen. Support spacing and the softness of the product determine whether the center stays flat enough for the process.
For a moving conveyor, order a finished belt rather than fitting a stationary panel into a tensioned loop. A conveyor joint, tracking guide and roller contact need a belt-specific construction.
Equipment & process duties
Place a defined mesh insert in a supporting tray for ventilated process work.
Use an edged sheet where operators repeatedly remove and replace the release panel.
Fit a custom outer profile while keeping the required center area open for airflow.
Direct answers
Specify both. Outside dimensions govern the tray fit; the active mesh area excludes the reinforced border and determines the open working area.
No. This is a removable mesh sheet. A moving belt needs a circumference or open length, a splice and tracking details matched to the conveyor.
No. The panel remains flexible. Use a tray or frame with suitable support spacing for the load and product shape.
Specify your requirement
Send the outside length and width, border width, required active mesh area, tray clearances and panel quantity. Add a profile drawing for shaped edges or fixing features.
